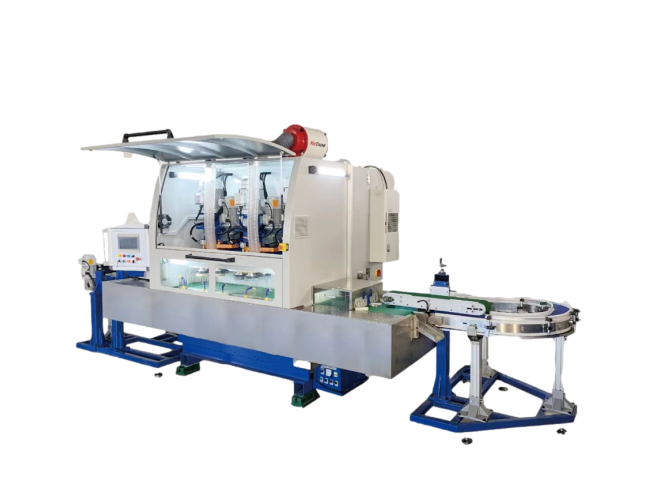

This series of machines is specifically designed to remove burrs from one or both sides
of parts that have sharp edges and burrs formed after precision punching, milling,
or grinding. They can automatically eliminate burrs on the part surface. The machines
feature a novel design with excellent accessibility, and the dry and wet areas are strictly
separated.
Advantages over similar equipment:
1. High precision: Not only does it meet burr removal requirements, but it also allows
control over the surface roughness of parts, especially for special applications like clutch
discs, according to customer specifications.
2. High efficiency: Can be used in conjunction with high-speed precision punching
machines, achieving a production rate of up to 1 piece per second.
3. The power head utilizes the latest advancements in burr removal technology. Its
high-power design and strong structural integrity enable effective burr removal.
Additionally, the optimized processing method reduces material consumption by 30%.
4. The conveyor uses deeply knurled or rubber-coated drive wheels to enhance traction.
The adjustable length of the conveyor belt extends its service life. The unique magnetic
field distribution ensures effective magnetization of parts. The belt can be as thick as
9 mm, allowing the transportation of parts with protrusions.
5. It enables precise control over the size of the rounded corners created after burr
removal.
6. The demagnetizer, developed through collaborative efforts, offers excellent
demagnetization results with low residual magnetism. It generates little heat and
consumes less power, saving up to 90% energy. Overall, the equipment operates quietly,
with noise levels below 80 decibels.
7. Automatic part flipping is reliable and fast. For parts requiring burr removal on both
sides, the processing speed can reach 2 pieces per second.

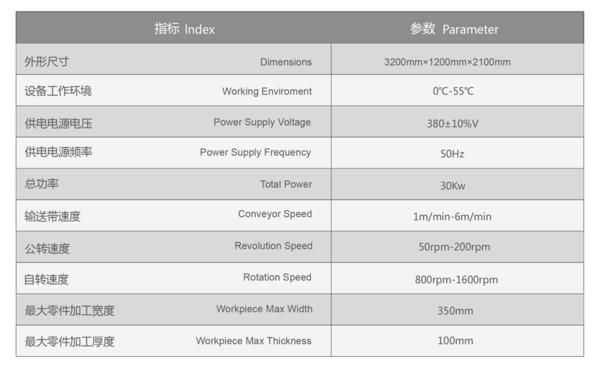

Main specifications:

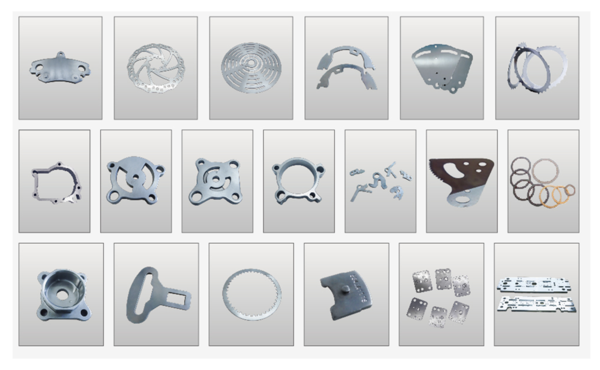

适用零件：
